Walking Beam Furnace

Overview

The walking Beam Type Reheat furnace is designed to Walking Beam lifts the loading material and moves it forward In the furnace so that the material can ‘walk’ in result, with continuous operation can achieve high production rates and high quality steel.

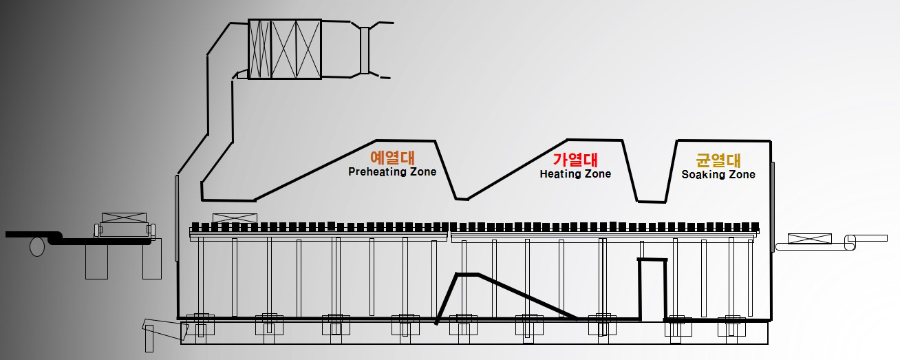

The entire furnace is divided into three sectors: Preheating Zone, Heating Zone, and Soaking Zone, and the process proceeds continuously while maintaining a short reheating time and high temperature uniformity.


Available Service

• Turn-Key Project

• Engineering / Design / Development

• Material Supply

• Construction

• Supervision

Section & Material



 Section

 Lining

 Material

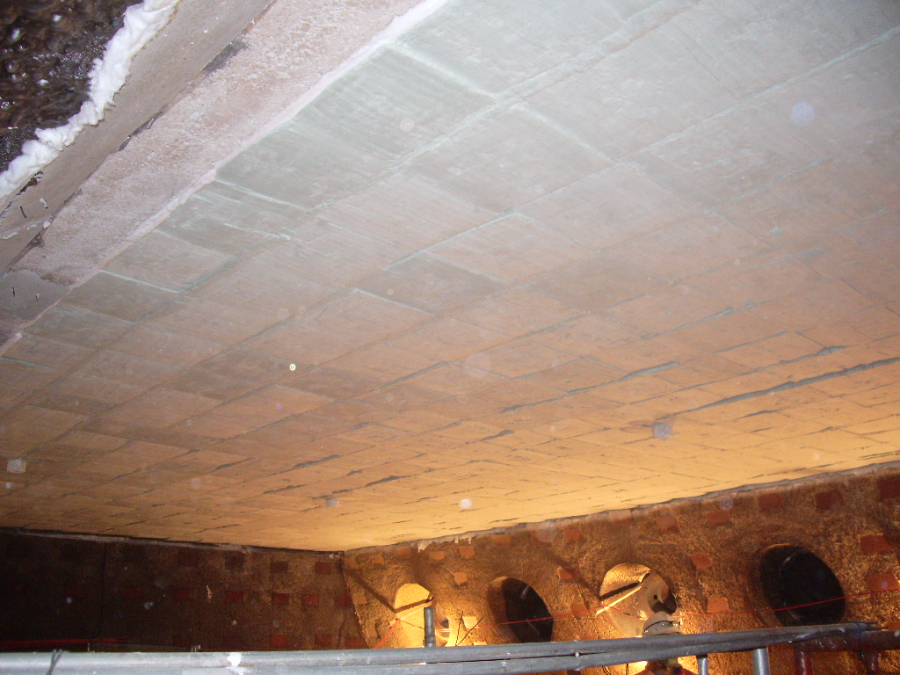

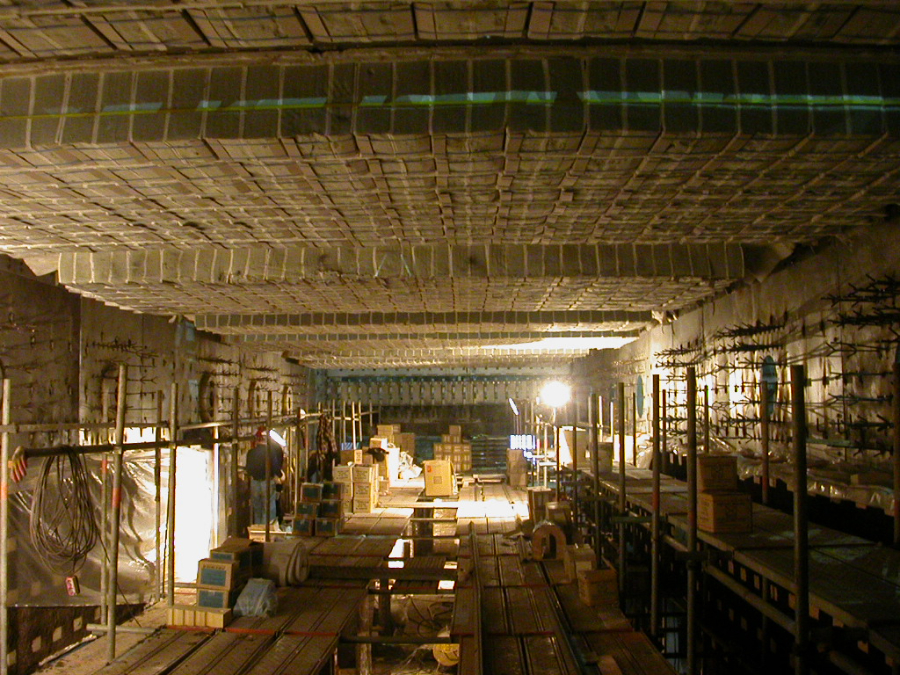

 ROOF

 CERMIC FIBER MODULE

 1600 CERAMIC BLANKET

 1500 CERAMIC MODULE

 CERAMIC CONCRETE

 SILPLATEMASS 1500

 END WALL

 &

 SIDE WALL

 BOARD

 SILICA BOARD

 1430 CERAMIC BOAR D

 INSULATING FIRE BRICK

 B-5

 PLASTIC

 70-RAM RM

 PLIRAM #80 AB

 ECORAM 85 CP

 DIVISION WALL

 CERMIC FIBER MODULE

 1600 CERAMIC MODULE

 LOWER SIDE WALL

 INSULATING FIRE BRICK

 B-5

 FIRE BRICK

 SK-34

 HEARTH

 BOARD

 Skamopetro S-1100E

 U-BRID

 1430 CERAMIC BOARD

 INSULATING CASTABLE

 GOLITE 1.0.4. MIX

 LITEWATE 800

 ECOLITE LWH 124 C/G

 FIRE BRICK

 SK-34

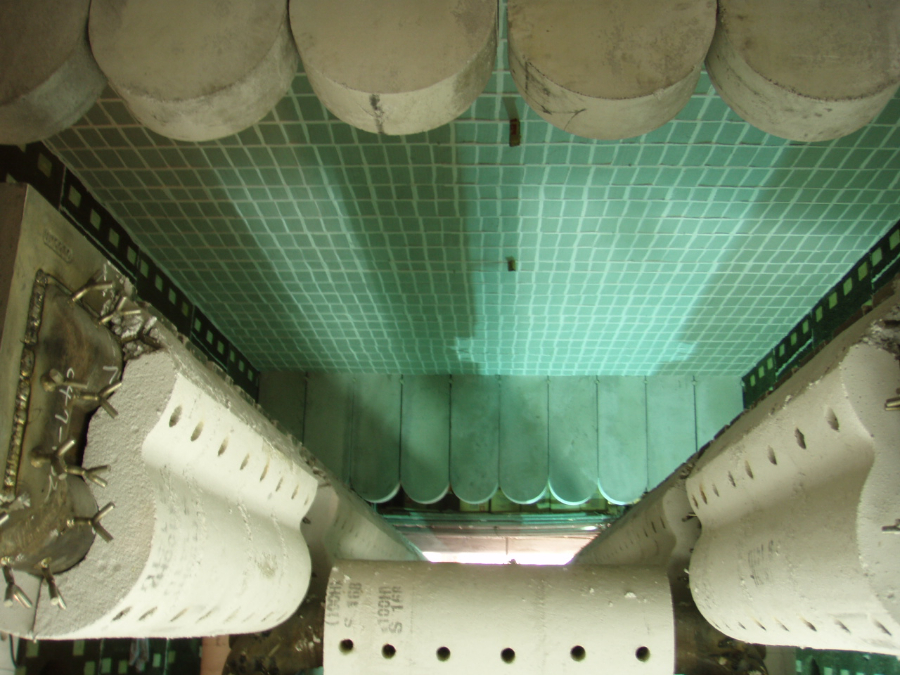

 SKID PIPE

 DENSE CASTABLE

 CURON 170 Sp

 CERCAST 165

 ECOKAST LC 165 HST

 ECOKAST LC 17

 ​

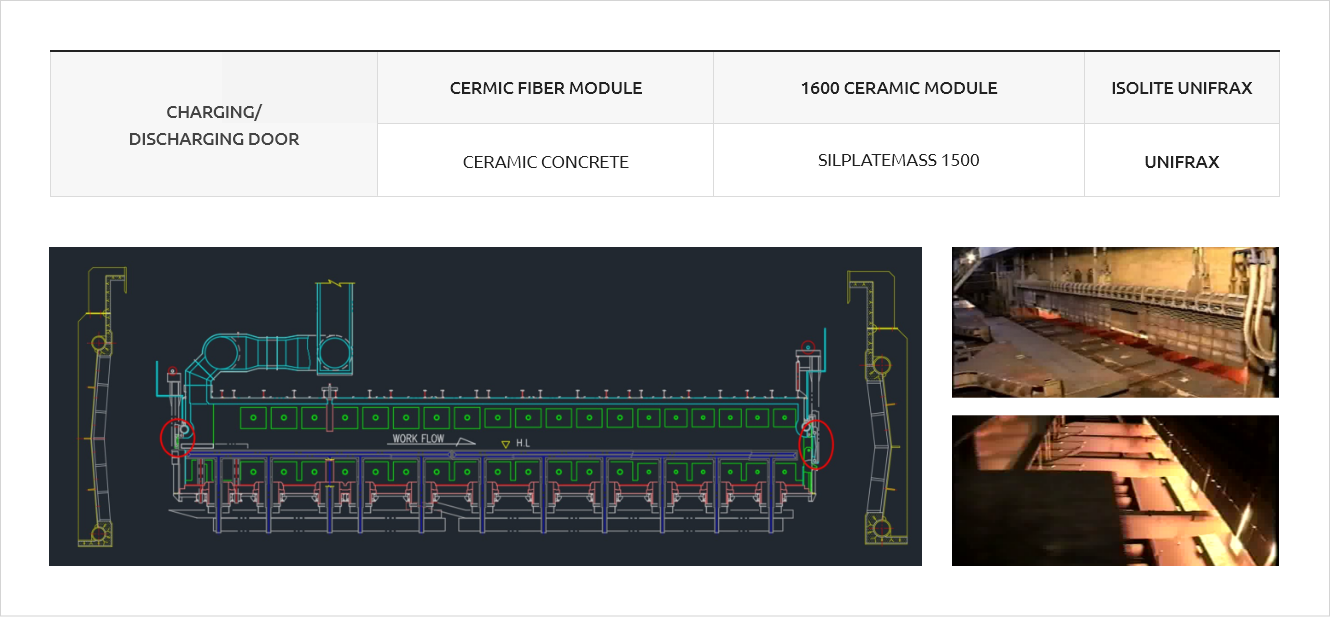

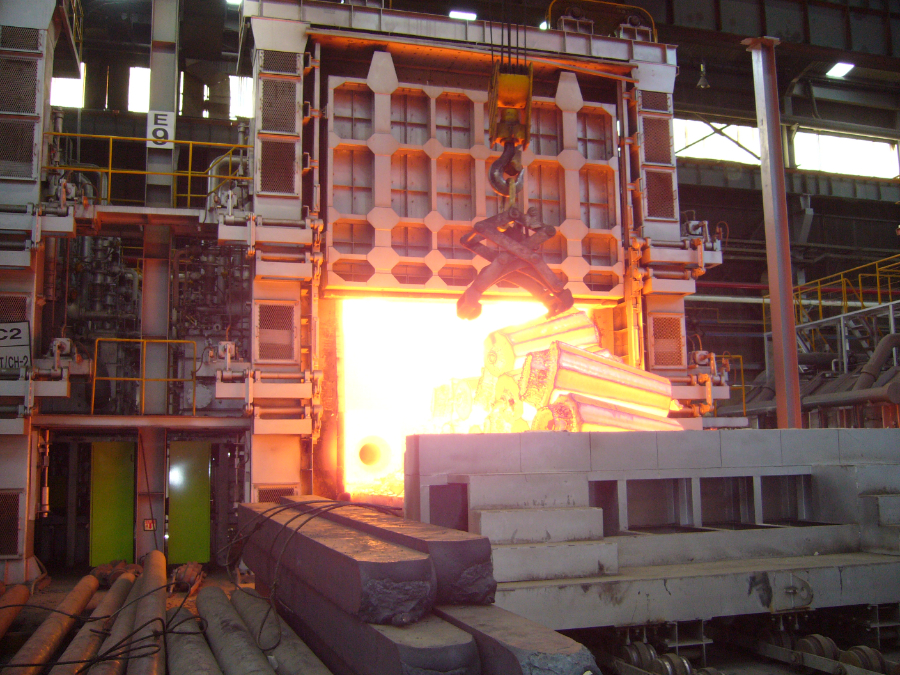

Charging / Discharging Door

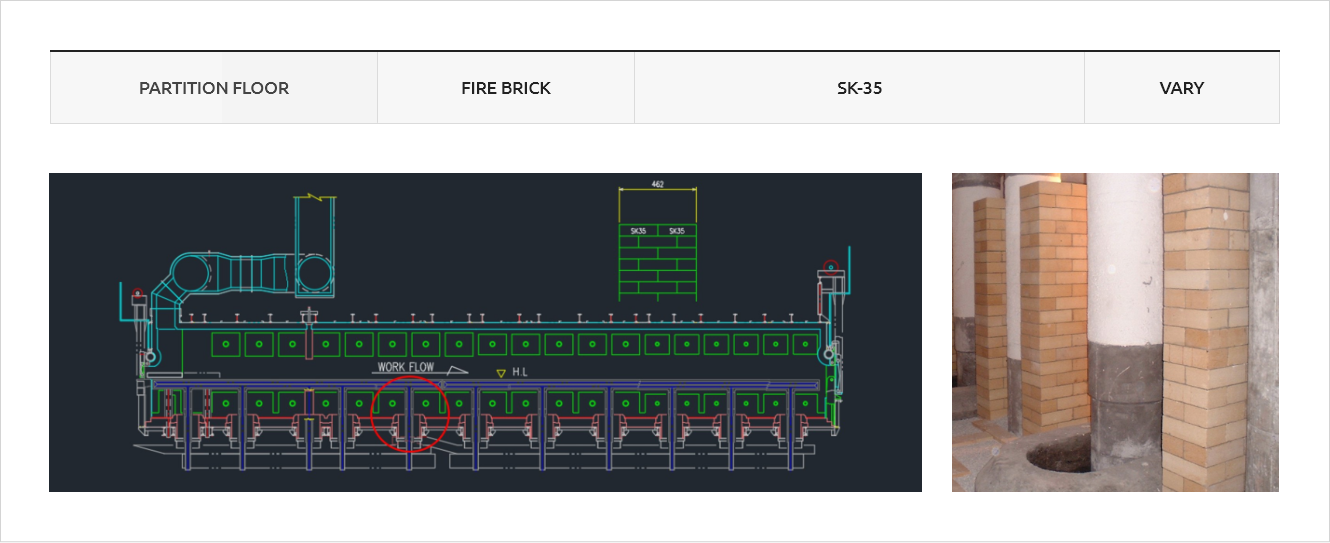

Partition Floor

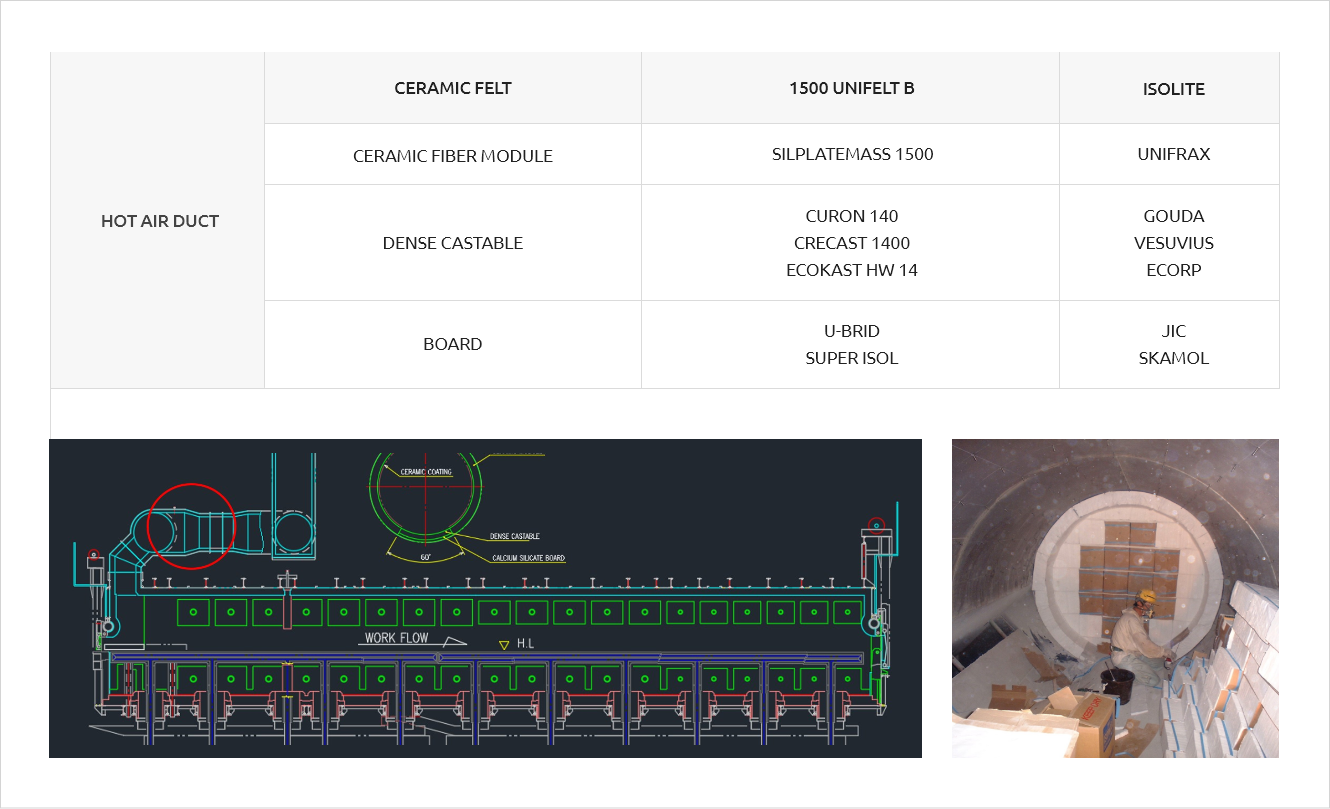

Hot Air Duct
